The Work Zone Performance Report empowers you to quickly generate a performance report for any work zone. Your report tracks congestion, speed, and delay against your defined goals for a period of up to seven days. You can initiate a Work Zone Performance Report from any RITIS tool that includes work zone event data or directly from the PDA main menu.
Key features include:
- Configurable performance goals for congestion, speed, and delay.
- Work zone analysis for upstream and downstream segments.
- Weather and traffic incident data for assessing influence on work zone performance.
- A dynamic three-to-seven-page PDF ready for export and distribution.
On this page, you will find:
- How to Initiate a Work Zone Performance Report
- Overview of the Query Page
- Overview of the Report Page
How to Initiate a Work Zone Performance Report
There are three methods for initiating a report:

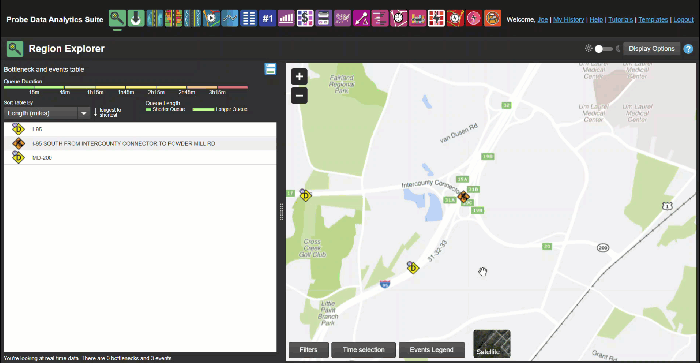

- You can select the report option where work zone event data is present in any RITIS tool. This option imports the work zone location to the query page. This method is recommended (see example below).
- You can access the Work Zone Performance Report directly from the PDA main menu.
- You can access the Work Zone Performance Report through the Report Templates page.
Overview of the Query Form

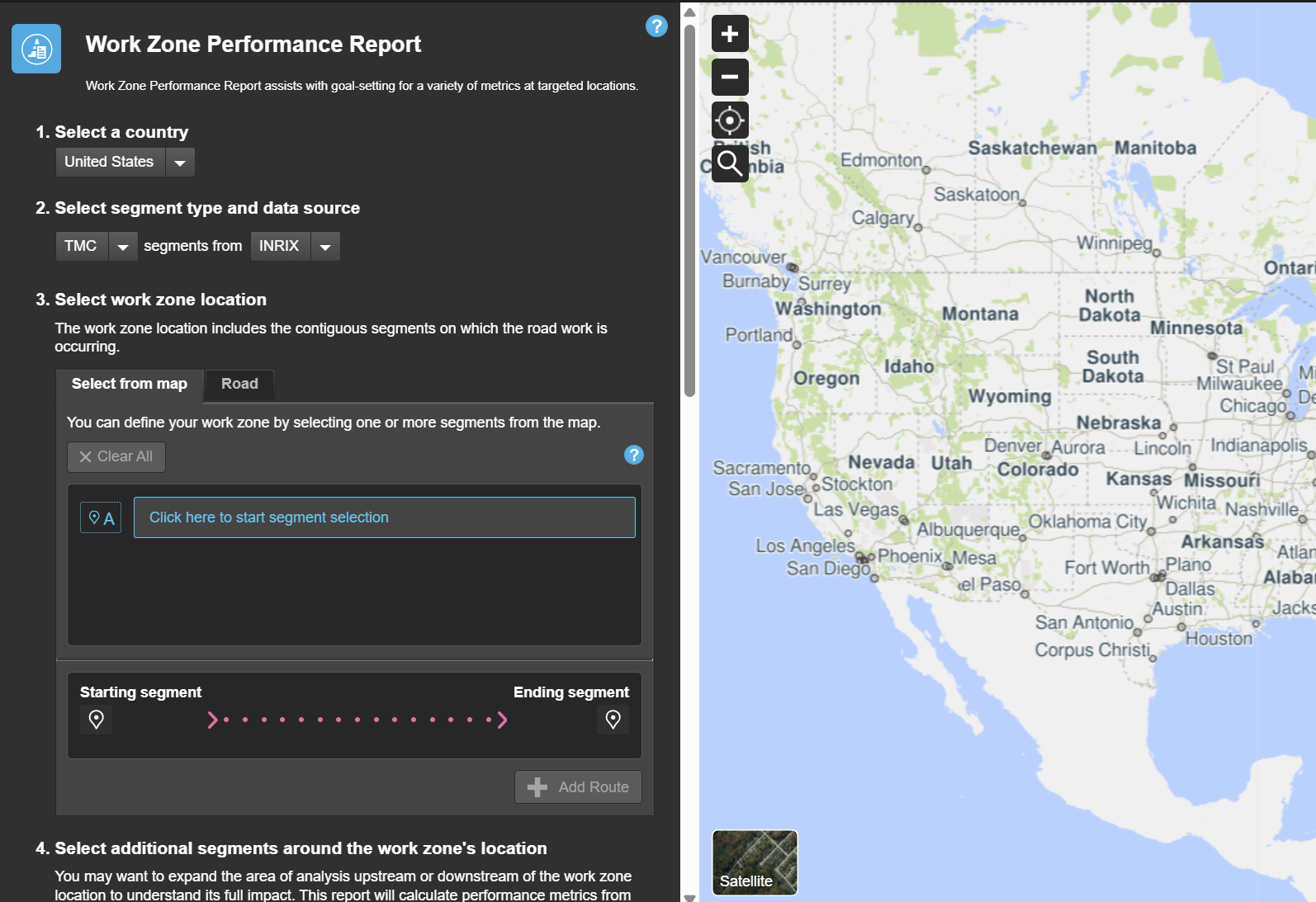

The query form is like other PDA tools where the workflow consists of steps to build a query, and the segment selections will be plotted and edited in the map box.
NOTE:
If you initiate a report from a work zone's details identified in another RITIS tool, the road information will automatically populate based on that work zone's location.
If you start a report directly within the Work Zone Performance Report, you will need to complete the query form manually, as outlined below.
| 1 | Select a country |
| 2 |

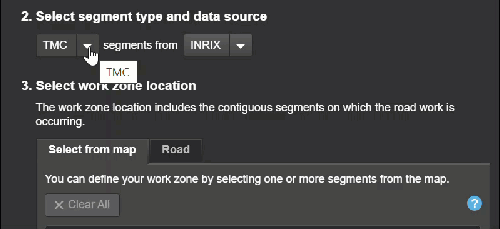

Select segment type and data source The segment type and data source specify the provider and segmentation type used to calculate performance measures.
Note: The provider and segmentation type selections will persist from your previous use of the Work Zone Performance Report. |
| 3 |

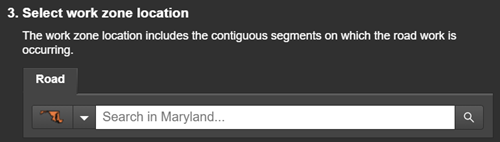

Select work zone location The work zone location establishes the spatial parameter of your report and will be comprised of one or more contiguous segments in a single direction. The work zone selection process is similar to the road selection process in other PDA tools. For more information on the road selection process in Work Zone Performance Report, please see: Work Zone Performance Report - Road Selection. Note: If you initiate a Work Zone Performance Report from work zone details in another tool, the road location will be automatically populated for you. You will see the location represented on the map and the work zone description under this step in the query form. The work zone location on the map will have an arrow indicating direction. |
| 4 |

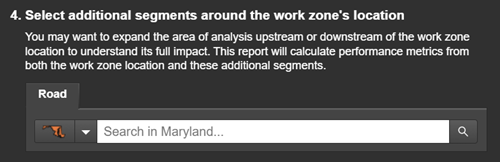

Select additional segments around the work zone's location You can add upstream and downstream segments to enhance your reporting on the impact of the work zone. Note: The additional segment selection process is the same as the road selection process in other PDA tools. For more information on the road selection process in Work Zone Performance Report, please see: Work Zone Performance Report - Road Selection. Once you have selected upstream or downstream segments, they appear in the map box with an arrow indicating direction in a color differentiating the selection from the work zone segments. Since the results are only useful if the work zone segments and adjacent segments are well ordered, you should remember the following: You can select upstream and downstream segments as a single selection that overlaps the work zone or you can make two discrete selections of additional segments.
|
| 5 |

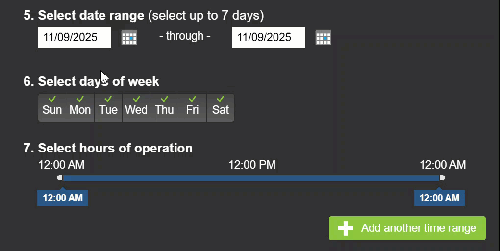

Select date range The work zone performance report will generate metrics for a date range of up to 7 days allowing for weekly reports. To select an analysis date range:
|
| 6 |
Select days of week You can toggle on and off days of the week. This selection process allows you to query only weekdays or exclude days when the work zone is not in operation. |
| 7 |

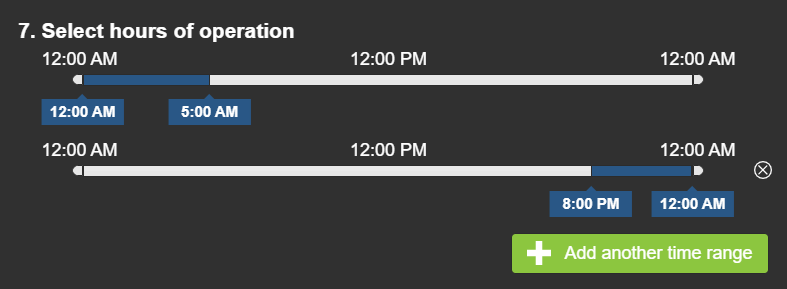

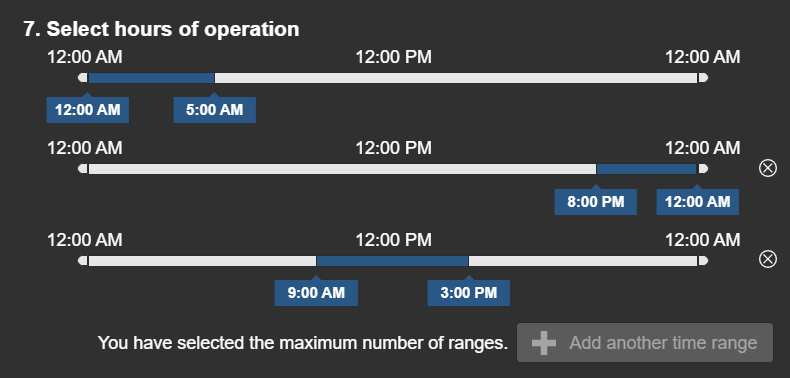

Select hours of operation To accurately report on work zone performance, you will want to provide the hours of operation. You may select up to three periods with the slider. The following examples provide best practices for time selection.
|
| 8 |

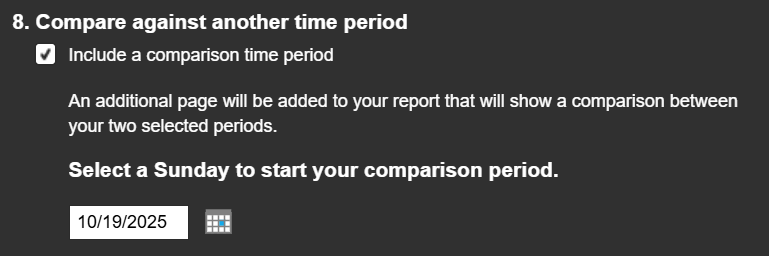

Compare against another time period (optional) In addition to reporting performance measures for your selected date range, you may add a comparison time period to your report to enhance your understanding of the impact of the work zone. This is an optional step that will produce line chart comparisons focused on speed, congestion and weather metrics. To enable a comparison period:
|
| 9 | Provide a title for this report (optional) |
| 10 | Provide notes for this report (optional) |
| 11 |
Select Submit The Submit button will be available when all required parameters are complete. When you select Submit, a new tab will open with your Report. |
Overview of the Report

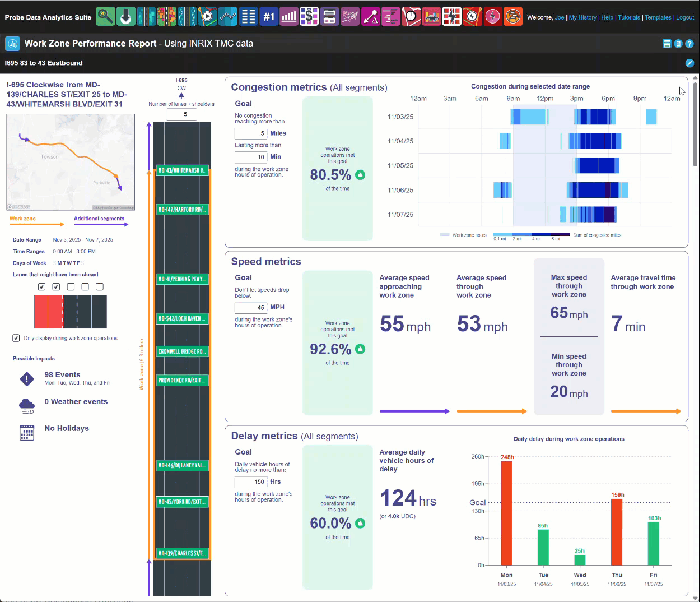

The results page is a dynamic performance report for the work zone. Once the report opens in a new tab you can configure the performance goals for Congestion, Speed, and Delay.
The report is a single, scrollable web page that can be exported as a PDF of up to seven pages. The report opens on the Summary section, and you can view the full content by scrolling down the page (see video below).
Your report PDF can be composed of the following pages when exported:
- Goal Summary
- Congestion Metrics Details
- Speed Metrics Details
- Delay Metrics Details Chart
- Delay Metrics Details Table
- Line Chart Comparison (Optional)
Goal Summary
The Summary Page is composed of the following elements:
- Query Summary
- Possible Impacts
- Lane Diagram
- Summary Panels: Congestion, Speed, Delay

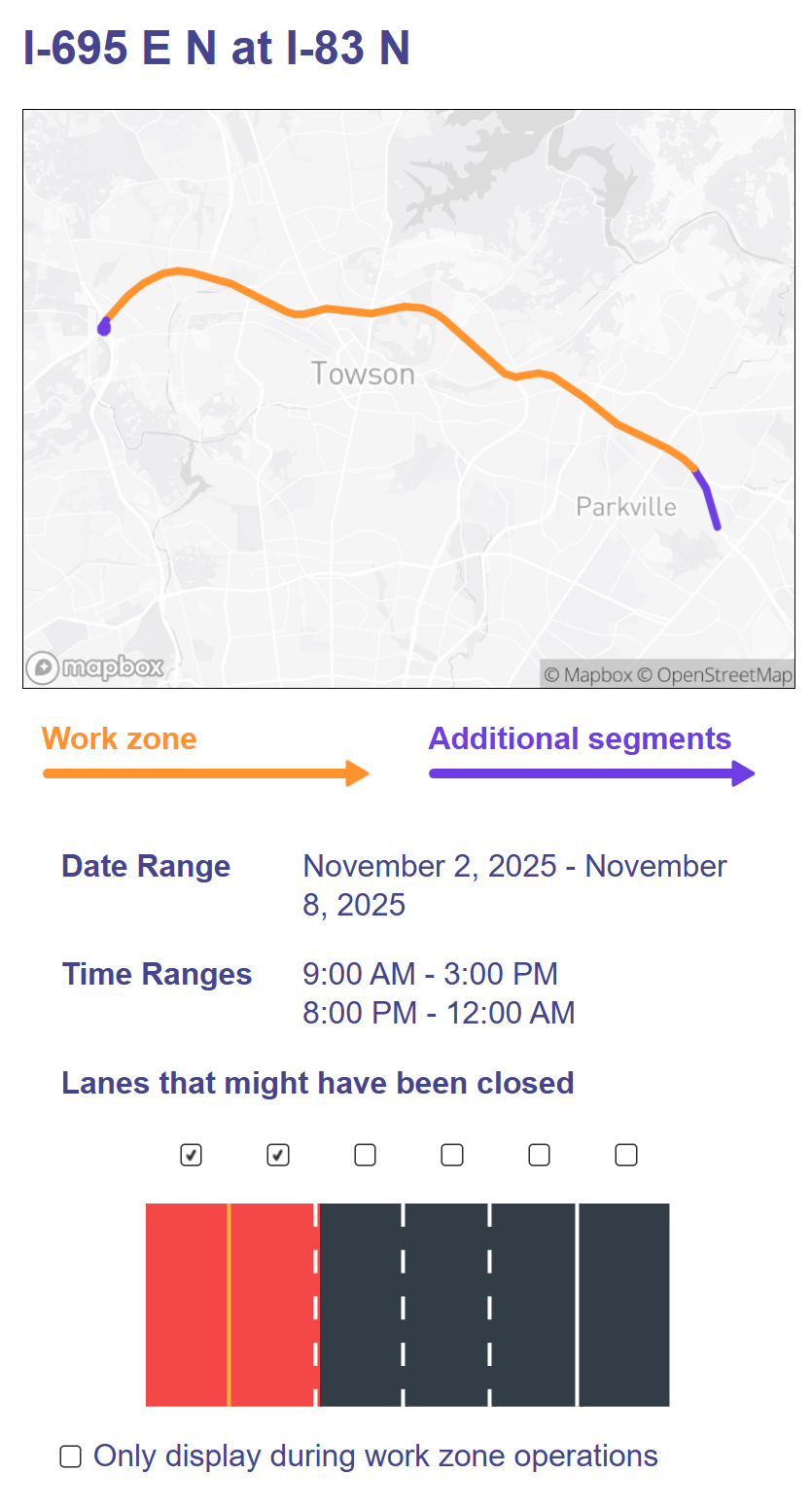

Query Summary
This section provides your audience with a clear understanding of the work zone definition.

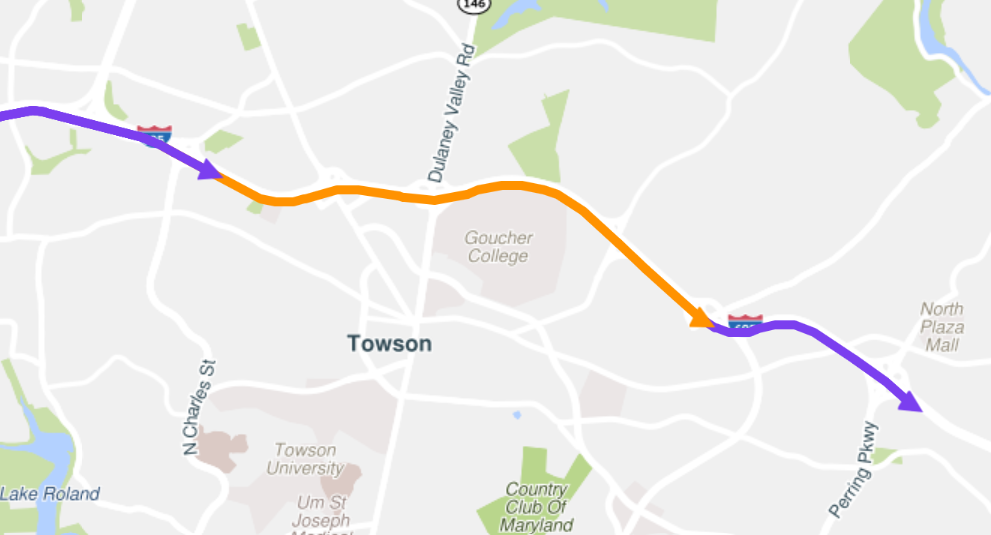

- Map Box – A summary map view of the work zone location and additional segments
- Date Range – Analysis period
- Time Ranges – Work zone hours of operation
- Lanes that might have been closed – This section allows you to customize the lane visualization in the report. If known, this customization is recommended to allow your audience to easily understand the influence of lane closures on work zone performance.
To customize lane closure visualizations:
- Locate the Lanes that might have been closed section under the report description on the left side of the summary page.
- You can tick each checkbox above any lane or shoulder that may have been closed.
- Locate the Only display during work zone operations checkbox directly below the lanes. The box is unselected by default which will display the selected lanes as closed during all hours.
- Tick the checkbox to display only during work zone operational hours.

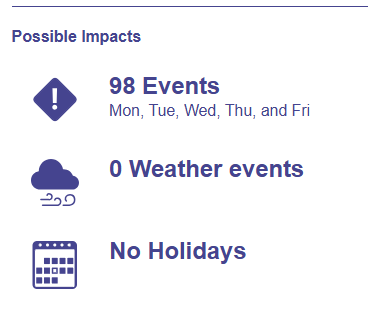

Possible Impacts
This section summarizes Incidents, Weather events, and any holiday travel days included in your report.
Lane Diagram
The lane diagram represents the maximum number of lanes + shoulders in your selected segments. If needed, you can adjust the number of lanes in the diagrams by changing the numeric value in the text box.
Summary Panels: Congestion, Speed, Delay
The summary panels provide an easily understandable analysis of the work zone’s performance. Each summary panel presents your performance goal definition, success rate, and a summarized visualization.
Your report is dynamic, and once the page loads, you can configure each performance goal. To customize a performance goal, locate the text box for each category and input a numerical threshold for evaluating each metric.

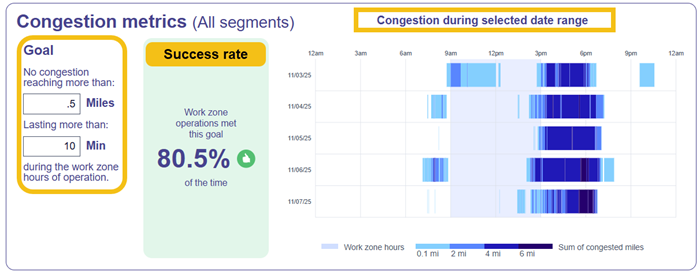

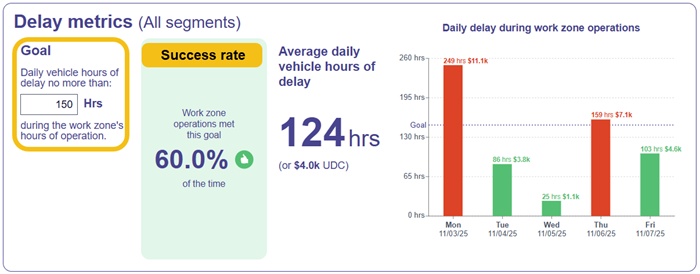

Congestion Summary Panel
Congestion is measured for all segments in your query (work zone + additional segments). Your congestion performance goal is the target value and is a measure of length and duration.
-
Goal – configurable target values for Congestion metrics.
- To define your congestion goal: Locate the text box for each category (Miles and Minutes) and input a target numerical value for each.
- Success rate – The percentage of time the congestion goal was met with a success indicator. The success indicator threshold is 50%.
- Congested during selected date range – This bar chart represents the sum of congested miles by time of day. You can identify each day in your analysis period by the label on the y-axis. The chart allows you to easily see the extent of congestion in relation to the work zone hours of operation.

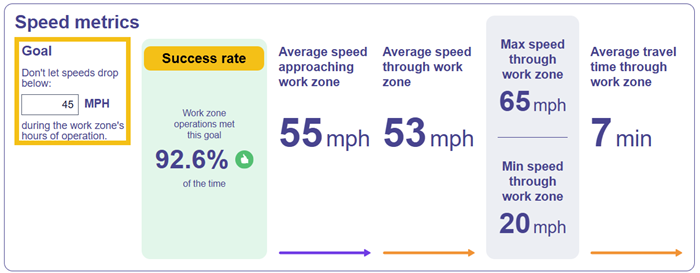

Speed Summary Panel
There are five speed measures included in the summary panel. The speed measure used for goal evaluation is the average speed through the work zone. Your speed performance goal is the target average speed.
-
Goal – configurable target value for speed through the work zone.
- To define your speed goal: Locate the text box for MPH and input a numerical target value.
- Success rate – The percentage of time the goal was met with a success indicator. The success indicator threshold is 50%.
- Average speed approaching Work Zone – The average speed across the nearest upstream additional segment during the hours of operation.
- Average speed through Work Zone – The average speed across work zone segments during the hours of operation.
- Max speed through Work Zone - The maximum speed observed during the hours of operation.
- Min speed through Work Zone - The minimum speed observed during the hours of operation.
- Average travel time through Work Zone - The travel time in minutes to traverse the work zone segments during the hours of operation.
Delay Summary Panel
Delay is measured for all segments in your query (work zone + additional segments) during the hours of operation. Delay quantifies the impact that congestion is having in the work zone using vehicle hours of delay and user delay cost.
Your delay performance goal is the target value for daily vehicle hours of delay during the hours of operation. The goal is a measure of the number of days the goal is achieved during your analysis period.
-
Goal – configurable target value for Delay metrics.
- To define your speed goal: Locate the text box for Hrs and input a target numerical value.
- Success rate – The percentage of days the delay goal was met with a success indicator. The success indicator threshold is 50%.
- Average daily vehicle hours of delay – The average daily vehicle hours of delay for all segments (work zone + additional segments) during the hours of operation.
- Daily delay during work zone operations – This chart represents the vehicle hours of delay by day. The chart allows you to easily see the work zone impact on road users.
- Delay Metrics is currently not supported by all segment types.

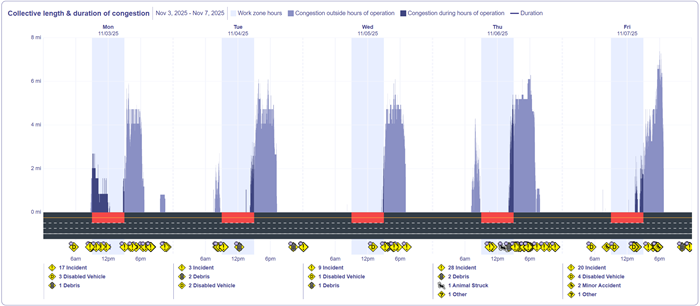

Congestion Metrics Details
The Congestion Metrics Details page provides an expanded view of the Congestion Metrics with the Collective length and duration of congestion chart.
The chart allows you to analyze the work zone impact by measuring congestion. Congestion is measured by length (y-axis) and duration (x-axis) and presented by day in relation to the hours of operation, lane closures, and incidents.
Features:
- The chart represents each day of your analysis period separately as indicated by the day and date heading and time of day along the x-axis.
- The length goal is indicated with a horizontal line.
- Congestion is measured for all hours of the day with congestion during the hours of operation visualized distinctively.
- Work zone hours of operation are indicated by shading in the chart.
- Lane closures are represented on the road diagram by a red overlay. By default, lane closures are for all hours unless you select “Only display during work zone operations” on the Summary Page.
- Incidents
- Incidents are plotted along the x-axis by time of day of the event.
- Incidents are summed by type and date of occurrence.
Speed Metrics Details

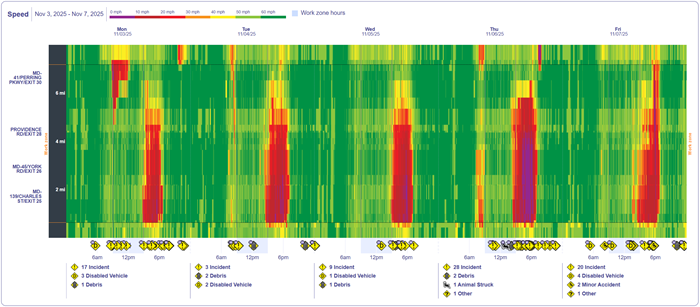

The Speed Metrics Details page provides an expanded view of Speed Metrics with the Speed graph. The Speed graph on the details page is a contour plot representing traffic speeds through the work zone and additional segments. You can quickly identify where the work zone performance may need attention by recognizing recurring slowdowns in the graph.
Features:
- The graph represents each day of your analysis period separately as indicated by the day and date heading and time of day label along the x-axis.
- The y-axis displays the road by identifying intersection name, analysis zone length, and work zone.
- Speed is plotted by time of day and location according to values found in the legend.
- Work zone hours of operation are indicated by shading along the x-axis.
- Incidents
- Incidents are plotted along the x-axis by time of day of the event.
- Incidents are summed by type and date of occurrence.

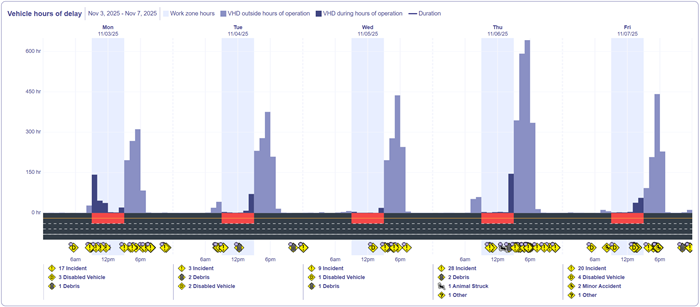

Delay Metrics Details Chart
The Delay Metrics Details Chart provides an expanded view of the Delay Metrics with the Vehicle hours of delay totals by hour chart.
The chart allows you to measure the work zone impact on road users by representing the Vehicle Hours of delay (y-axis) by time of day (x-axis) in relation to the hours of operation, lane closures, and incidents.
Features:
- The chart represents each day of your analysis period separately as indicated by the day and date heading and time of day label along the x-axis.
- The delay goal is indicated as a horizontal threshold.
- Vehicle Hours of Delay (VHD) measured for all hours of the day with VHD during the hours of operation visualized distinctively.
- Work zone hours of operation are indicated by shading in the chart.
- Lane closures are represented on the road diagram by a red overlay. By default, lane closures are for all hours unless you select “Only display during work zone operations” on the Summary Page.
- Incidents
- Incidents are plotted along the x-axis by time of day.
- Incidents are summed by type and date of occurrence.

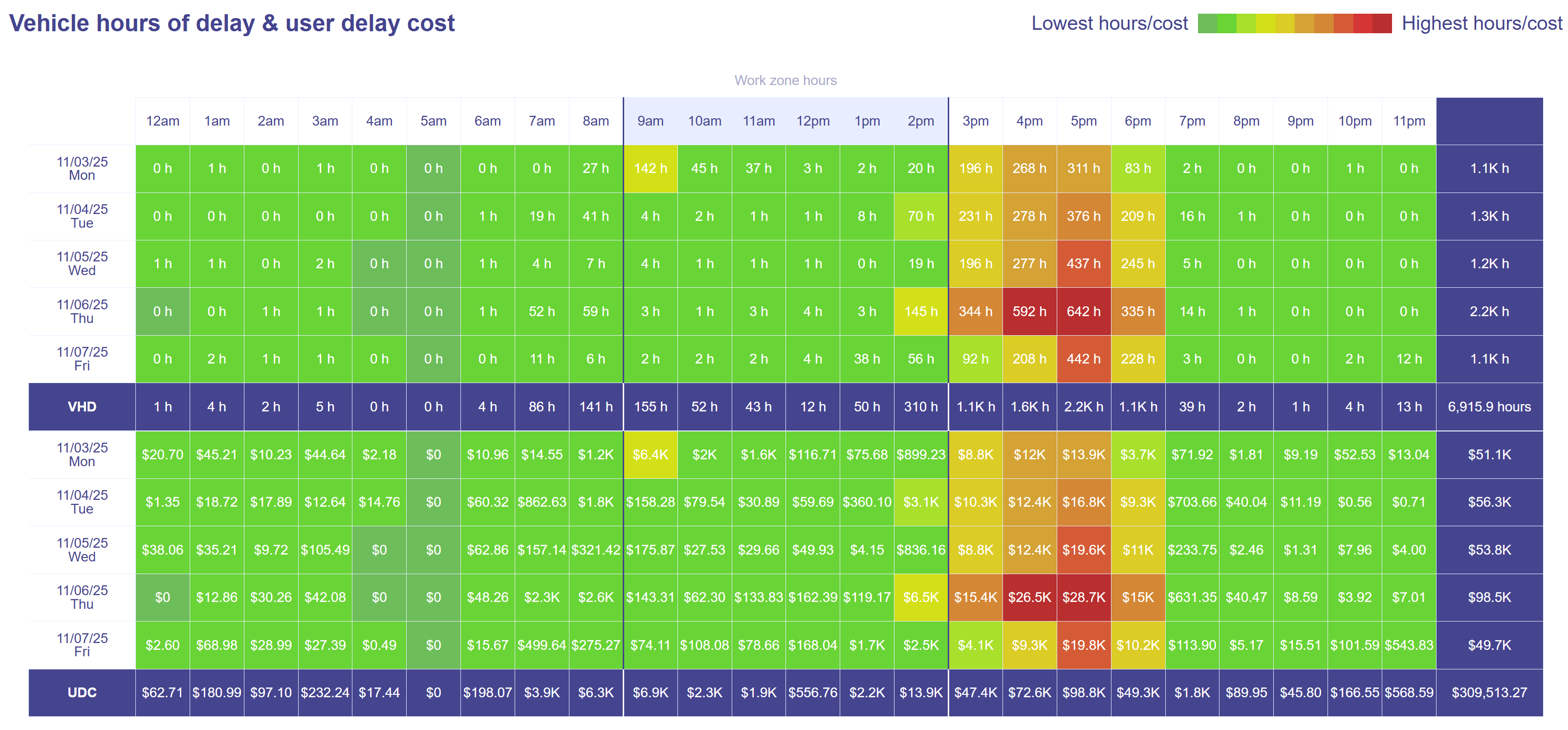

Delay Metrics Details Table
The Delay Metrics Details Page 2 provides an expanded view of the Delay Metrics with the Vehicle hours of delay & user delay cost table.
The table allows you to measure work zone impact by vehicle hours of delay and to place an estimated dollar value on the impact by hour and day.
Features:
- The stacked table includes both Vehicle Hours of Delay and User Delay Cost on the y-axis with a value for each hour of the day. Each day in the analysis period is indicated by a row in the respective table.
- Work zone hours of operation are highlighted, allowing you to easily quantify work zone impact on a particular day.
- Total VHD and Total UDC are available for each hour of the day and for each day.
Line Chart Comparison
The Line Chart Comparison only appears in your report if you select a comparison time period in the Compare against another time period section of the query page.

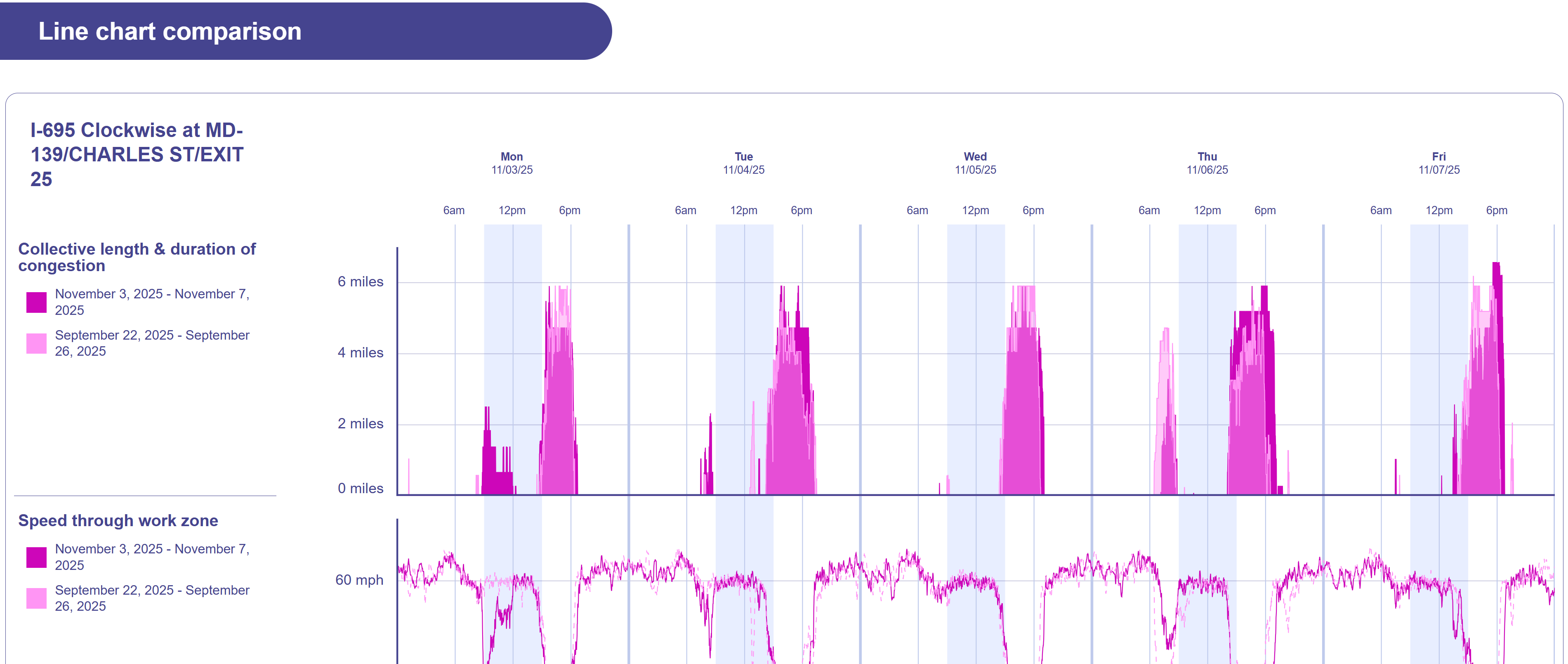

The Line Chart Comparison allows you to assess the potential influence of weather and incidents on work zone performance by visualizing the performance metrics, weather, and incidents for your work zone analysis period and a baseline period.
Comparison Metrics:
- Collective length and duration of congestion - Cumulative length of congestion across all segments by time of day and day of week.
- Speed through Work Zone - Average speed across work zone segments by time of day and day of week.
- Average Travel Time Delay - The observed travel time in minutes across the work zone segments minus the historic average travel time across the work zone segments by time of day and day of week.
- Air Temperature - The average surface air temperature in Fahrenheit across the work zone segments by time of day and day of week.
- Precipitation Rate - The maximum rate of precipitation across the work zone segments by time of day and day of week.
The Possible Impacts chart maps weather and incident events by time of day and date. This chart represents events during your analysis period and allows you to evaluate the possible influence reported events have on your work zone performance.
Features:
- The charts represent each day of your analysis period separately as indicated by the day and date heading and time of day label along the x-axis.
- Work zone hours of operation are indicated by shading in the chart.
- The legend in each chart identifies the measure for your work zone date range as dark pink in contrast with the comparison date range which is light pink.
- The Possible Impacts chart indicates the start and duration of precipitation and traffic events.
- Lane closures are represented on the road diagram by a red overlay. By default, lane closures are for all hours unless you select "Only display during work zone operations" on the Summary Page.
Export
You can export your report at any time. Simply locate and select the download icon on the Report page. The file format is PDF.
